Burs / ST

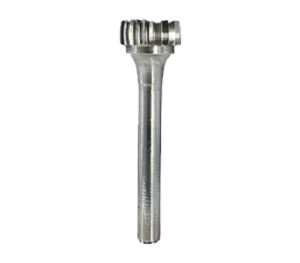

Rim Shape
- Shape code: USCTI – SN, ISO – ZYA, India - A
- Both inch and metric dimensions are available as standard
- Construction of the carbide burr – All sizes 6mm / 1/4 inch and below are available in solid carbide. All other sizes are from brazed construction
- Carbide burrs are available with a variety of cuts like – Single cut (Z3), Double Cut (ZX/Z4/Z7), Diamond Cut (Z6), NF Cut (Z1/Z2), Aluminum Cut (Z9), Fine Cut (Z5), Steel & INOX Cut (Z42)
SINGLE CUT
DOUBLE CUT
DIAMOND CUT
NF CUT
ALUMINUM CUT
STEEL CUT
INOX CUT
SINGLE CUT
| Code | Tip Dia | Tip Length | Shank Dia | OAL | Construction |
|---|---|---|---|---|---|
| T 1030 | 10 | 2 | 6 | 52 | Brazed, Fig 3 |
| T 1524 | 15 | 4 | 6 | 54 | Brazed, Fig 3 |
| T 2040 | 20 | 6 | 6 | 56 | Brazed, Fig 3 |
Carbide burrs (Z3 Cut) are general-purpose tools designed for cast iron, steel, some copper and brass, and other ferrous materials. Single cut tools give good material removal and good workpiece finish. Single cut burrs have multiple teeth following the same spiral angle along the axis of the tool. This cut generates longer chips. It is the most popular cut in India.
DOUBLE CUT
Carbide Burrs in this shape are not available
DIAMOND CUT
Carbide Burrs in this shape are not available
NF CUT
Carbide Burrs in this shape are not available
ALUMINUM CUT
Carbide Burrs in this shape are not available
STEEL CUT
Carbide Burrs in this shape are not available
INOX CUT
Carbide Burrs in this shape are not available
